MSAD100-16

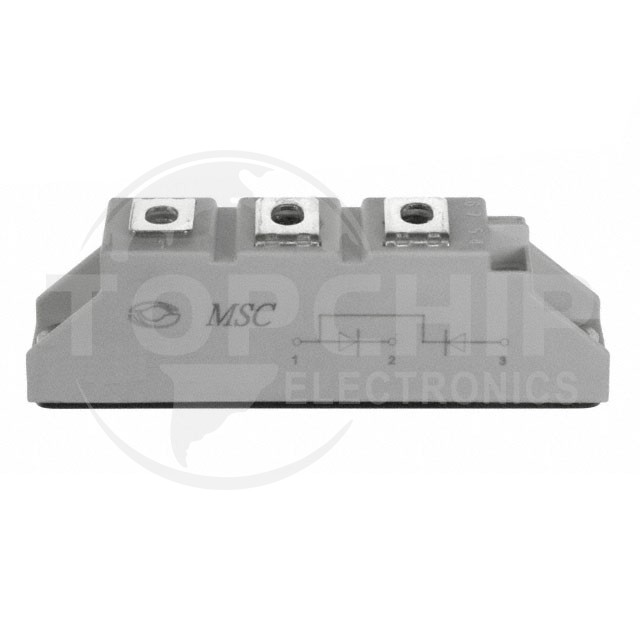

Image is for reference, please contact us to get the real picture

Manufacturer Part
MSAD100-16
Manufacturer
Microsemi
Description
DIODE MODULE 1.6KV 100A D1
Category
Discrete Semiconductor Products
Family
Diodes - Rectifiers - Arrays
Series
-
In Stock
0
Datasheets
-

MSAD100-16 Specifications

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Diode Configuration:1 Pair Common Anode
  • Diode Type:Standard
  • Voltage - DC Reverse (Vr) (Max):1600 V
  • Current - Average Rectified (Io) (per Diode):100A
  • Voltage - Forward (Vf) (Max) @ If:1.35 V @ 300 A
  • Speed:Standard Recovery >500ns, > 200mA (Io)
  • Reverse Recovery Time (trr):-
  • Current - Reverse Leakage @ Vr:5 mA @ 1600 V
  • Operating Temperature - Junction:-
  • Mounting Type:Chassis Mount
  • Package / Case:D1
  • Supplier Device Package:D1
