PMN23UN,165 Specifications

• Series:TrenchMOS™
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):20 V
• Current - Continuous Drain (Id) @ 25°C:6.3A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
• Rds On (Max) @ Id, Vgs:28mOhm @ 2A, 4.5V
• Vgs(th) (Max) @ Id:700mV @ 1mA
• Gate Charge (Qg) (Max) @ Vgs:10.6 nC @ 4.5 V
• Vgs (Max):±8V
• Input Capacitance (Ciss) (Max) @ Vds:740 pF @ 10 V
• FET Feature:-
• Power Dissipation (Max):1.75W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount

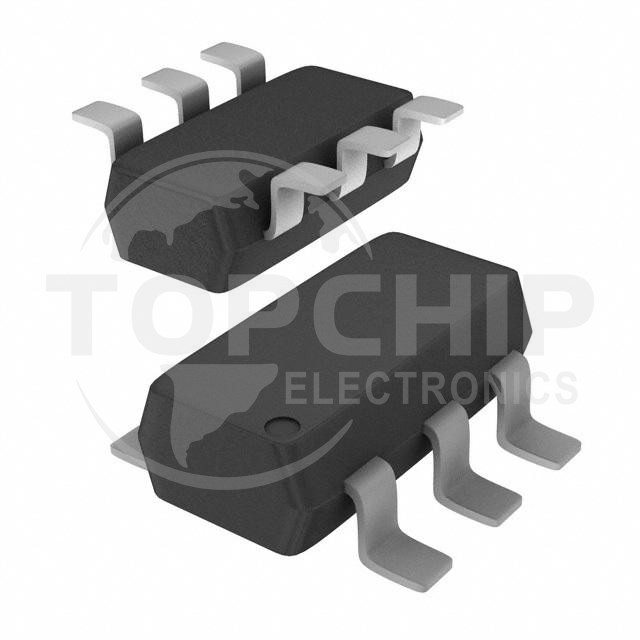

• Supplier Device Package:6-TSOP
• Package / Case:SC-74, SOT-457
