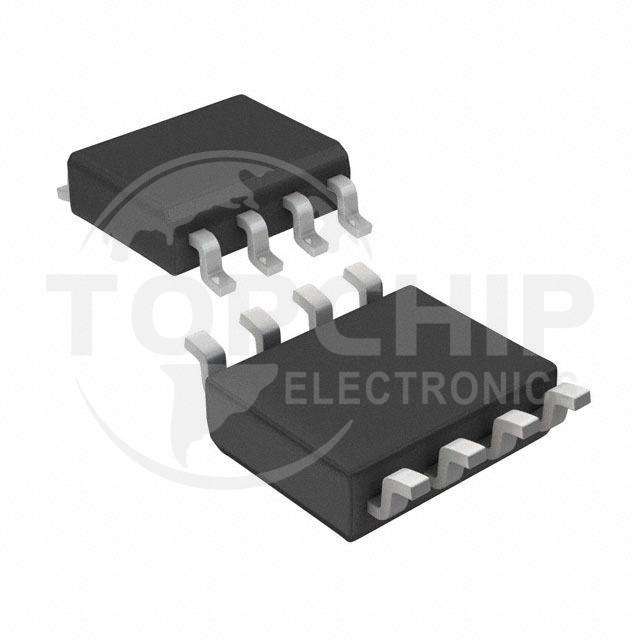

STGAP2SMTR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Technology:Magnetic Coupling
• Number of Channels:1
• Voltage - Isolation:1700VDC
• Common Mode Transient Immunity (Min):100V/ns
• Propagation Delay tpLH / tpHL (Max):100ns, 100ns
• Pulse Width Distortion (Max):20ns
• Rise / Fall Time (Typ):30ns, 30ns
• Current - Output High, Low:4A, 4A
• Current - Peak Output:-
• Voltage - Forward (Vf) (Typ):-
• Current - DC Forward (If) (Max):-
• Voltage - Output Supply:3V ~ 5.5V
• Operating Temperature:-40°C ~ 125°C (TJ)
• Mounting Type:Surface Mount
• Package / Case:8-SOIC (0.154", 3.90mm Width)
• Supplier Device Package:8-SO
• Approval Agency:-
