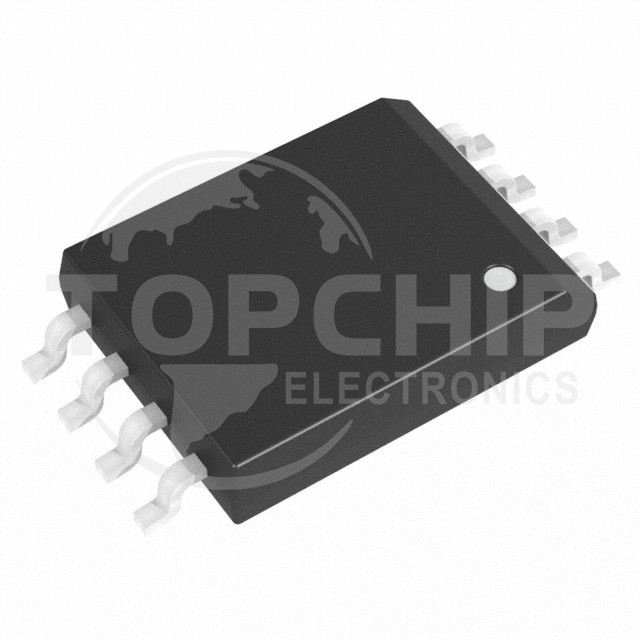

ADUM4121-1BRIZ-RL Specifications

• Series:iCoupler®
• Package:Tape & Reel (TR)
• Part Status:Active
• Technology:Magnetic Coupling
• Number of Channels:1
• Voltage - Isolation:5000Vrms
• Common Mode Transient Immunity (Min):150kV/µs
• Propagation Delay tpLH / tpHL (Max):42ns, 53ns
• Pulse Width Distortion (Max):13ns
• Rise / Fall Time (Typ):18ns, 18ns
• Current - Output High, Low:-
• Current - Peak Output:2.3A
• Voltage - Forward (Vf) (Typ):-
• Current - DC Forward (If) (Max):-
• Voltage - Output Supply:7.5V ~ 35V
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount
• Package / Case:8-SOIC (0.295", 7.50mm Width)
• Supplier Device Package:8-SOIC-IC
• Approval Agency:CSA, UR, VDE
