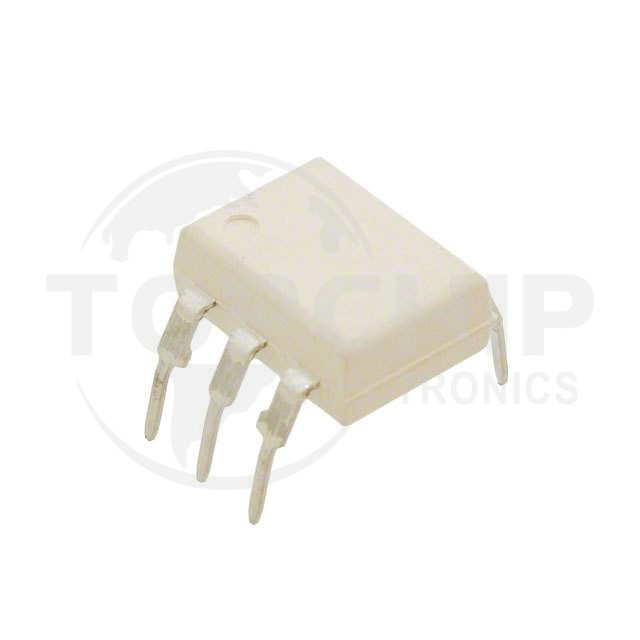

EL3061M-V Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Output Type:Triac
• Zero Crossing Circuit:Yes
• Number of Channels:1
• Voltage - Isolation:5000Vrms
• Voltage - Off State:600 V
• Static dV/dt (Min):1kV/µs
• Current - LED Trigger (Ift) (Max):15mA
• Current - On State (It (RMS)) (Max):100 mA
• Current - Hold (Ih):280µA (Typ)
• Turn On Time:-
• Voltage - Forward (Vf) (Typ):1.5V (Max)
• Current - DC Forward (If) (Max):60 mA
• Operating Temperature:-55°C ~ 100°C
• Mounting Type:Through Hole
• Package / Case:6-DIP (0.400", 10.16mm)
• Supplier Device Package:6-DIP
• Approval Agency:CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE
