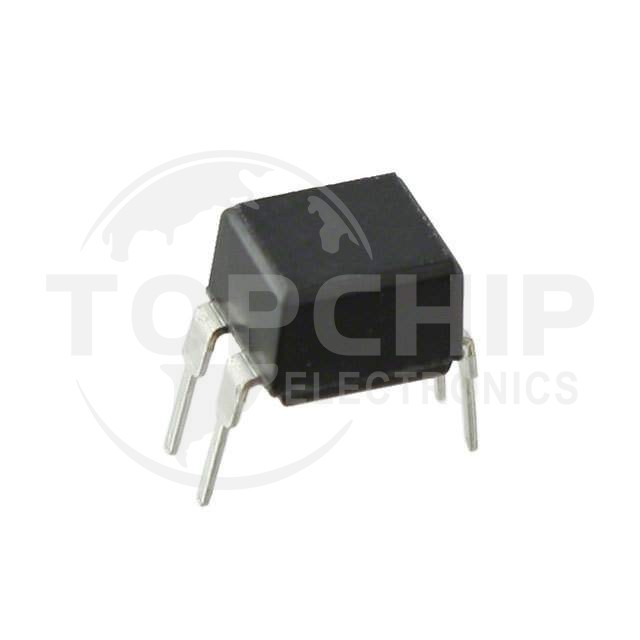

PS2561-1-H-A Specifications

• Series:NEPOC
• Package:Tube
• Part Status:Active
• Number of Channels:1
• Voltage - Isolation:5000Vrms
• Current Transfer Ratio (Min):80% @ 5mA
• Current Transfer Ratio (Max):160% @ 5mA
• Turn On / Turn Off Time (Typ):-
• Rise / Fall Time (Typ):3µs, 5µs
• Input Type:DC
• Output Type:Transistor
• Voltage - Output (Max):80V
• Current - Output / Channel:50mA
• Voltage - Forward (Vf) (Typ):1.17V
• Current - DC Forward (If) (Max):80 mA
• Vce Saturation (Max):300mV
• Operating Temperature:-55°C ~ 100°C
• Mounting Type:Through Hole
• Package / Case:4-DIP (0.300", 7.62mm)
• Supplier Device Package:4-DIP
