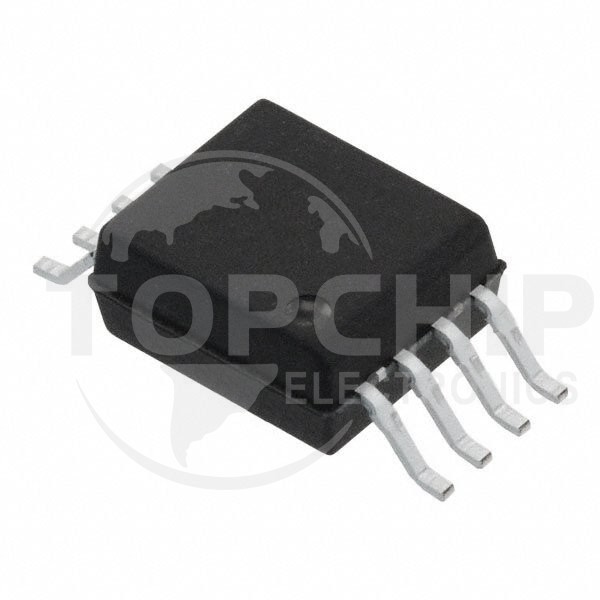

ACPL-K49T-000E Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Number of Channels:1
• Voltage - Isolation:5000Vrms
• Current Transfer Ratio (Min):32% @ 10mA
• Current Transfer Ratio (Max):100% @ 10mA
• Turn On / Turn Off Time (Typ):20µs, 20µs (Max)
• Rise / Fall Time (Typ):-
• Input Type:DC
• Output Type:Transistor
• Voltage - Output (Max):20V
• Current - Output / Channel:8mA
• Voltage - Forward (Vf) (Typ):1.5V
• Current - DC Forward (If) (Max):20 mA
• Vce Saturation (Max):-
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount
• Package / Case:8-SOIC (0.268", 6.81mm Width)
• Supplier Device Package:8-SO
