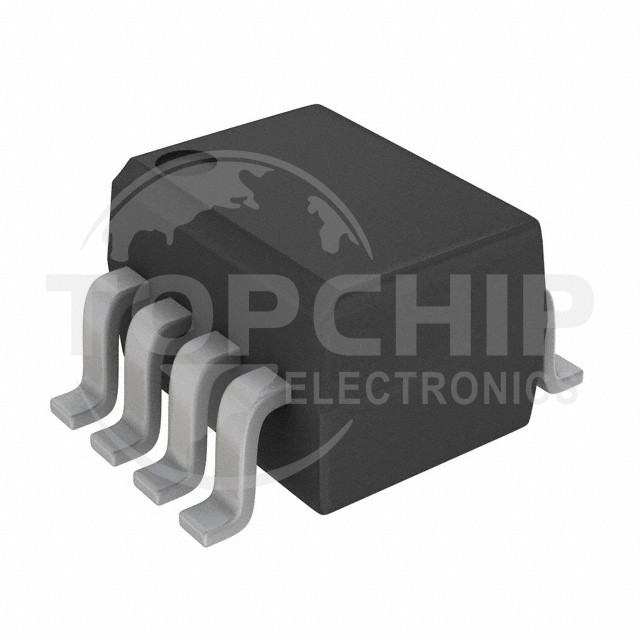

ACPL-227-56CE Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Number of Channels:2
• Voltage - Isolation:3000Vrms
• Current Transfer Ratio (Min):200% @ 5mA
• Current Transfer Ratio (Max):400% @ 5mA
• Turn On / Turn Off Time (Typ):3µs, 3µs
• Rise / Fall Time (Typ):2µs, 3µs
• Input Type:DC
• Output Type:Transistor
• Voltage - Output (Max):80V
• Current - Output / Channel:50mA
• Voltage - Forward (Vf) (Typ):1.2V
• Current - DC Forward (If) (Max):50 mA
• Vce Saturation (Max):400mV
• Operating Temperature:-55°C ~ 110°C
• Mounting Type:Surface Mount
• Package / Case:8-SOIC (0.173", 4.40mm Width)
• Supplier Device Package:8-SO
