SI8420BD-D-ISR

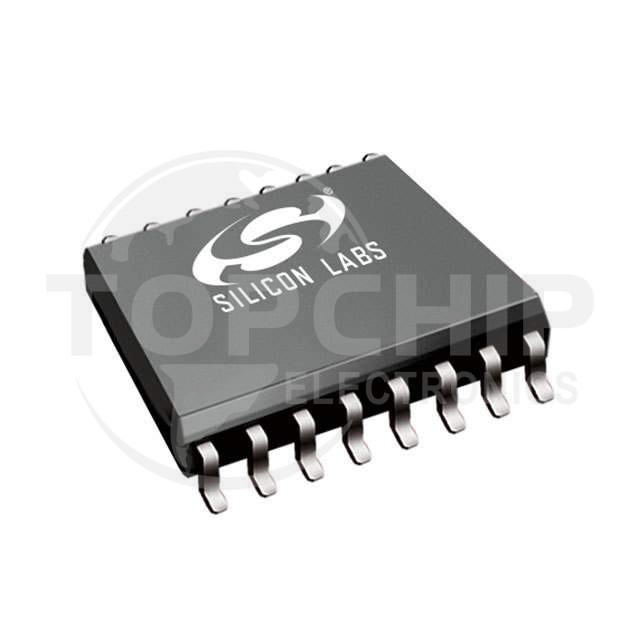

Image is for reference, please contact us to get the real picture

Manufacturer Part
SI8420BD-D-ISR
Manufacturer
Silicon Labs
Description
DGTL ISO 5000VRMS 2CH GP 16SOIC
Category
Isolators
Family
Digital Isolators
Series
-
In Stock
0
Datasheets
-

SI8420BD-D-ISR Specifications

  • Series:-
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Technology:Capacitive Coupling
  • Type:General Purpose
  • Isolated Power:No
  • Number of Channels:2
  • Inputs - Side 1/Side 2:2/0
  • Channel Type:Unidirectional
  • Voltage - Isolation:5000Vrms
  • Common Mode Transient Immunity (Min):20kV/µs
  • Data Rate:150Mbps
  • Propagation Delay tpLH / tpHL (Max):11ns, 11ns
  • Pulse Width Distortion (Max):3ns
  • Rise / Fall Time (Typ):2ns, 2ns
  • Voltage - Supply:2.7V ~ 5.5V
  • Operating Temperature:-40°C ~ 125°C
  • Mounting Type:Surface Mount
  • Package / Case:16-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package:16-SOIC
