ADG715BRUZ-REEL Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:SPST - NO
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:8
• On-State Resistance (Max):4.5Ohm
• Channel-to-Channel Matching (ΔRon):-
• Voltage - Supply, Single (V+):2.7V ~ 5.5V
• Voltage - Supply, Dual (V±):±2.5V
• Switch Time (Ton, Toff) (Max):20ns, 8ns (Typ)
• -3db Bandwidth:155MHz
• Charge Injection:3pC
• Channel Capacitance (CS(off), CD(off)):11pF, 11pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-90dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

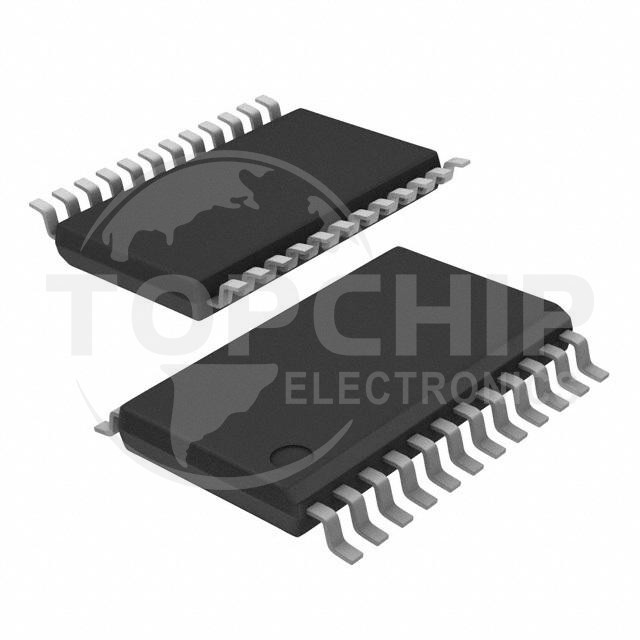

• Package / Case:24-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:24-TSSOP
