NLAS3157MX3TCG Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:1
• On-State Resistance (Max):9.9Ohm
• Channel-to-Channel Matching (ΔRon):300mOhm
• Voltage - Supply, Single (V+):1.65V ~ 4.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):30ns, 25ns
• -3db Bandwidth:1GHz
• Charge Injection:-
• Channel Capacitance (CS(off), CD(off)):3.8pF
• Current - Leakage (IS(off)) (Max):100nA
• Crosstalk:-21dB @ 240MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

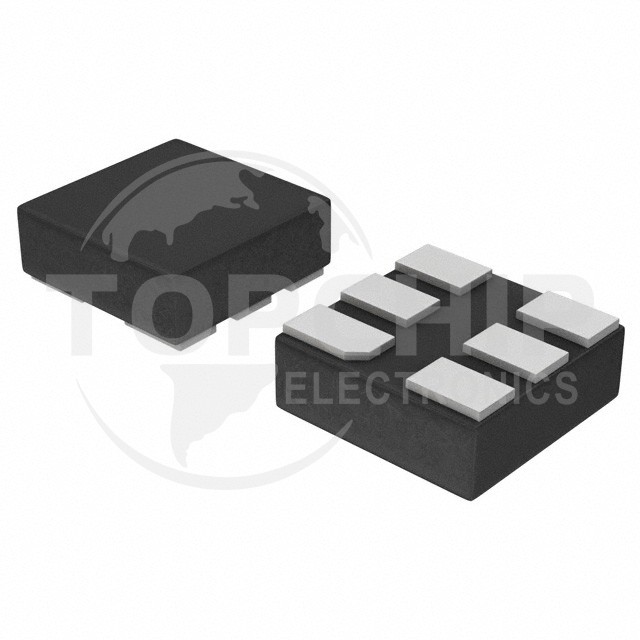

• Package / Case:6-XFDFN
• Supplier Device Package:6-ULLGA (1x1)
