ADG1404YRUZ-REEL7 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SP4T
• Multiplexer/Demultiplexer Circuit:4:1
• Number of Circuits:1
• On-State Resistance (Max):1.8Ohm
• Channel-to-Channel Matching (ΔRon):100mOhm
• Voltage - Supply, Single (V+):5V ~ 16.5V
• Voltage - Supply, Dual (V±):±4.5V ~ 16.5V
• Switch Time (Ton, Toff) (Max):120ns, 135ns
• -3db Bandwidth:55MHz
• Charge Injection:-20pC
• Channel Capacitance (CS(off), CD(off)):23pF, 90pF
• Current - Leakage (IS(off)) (Max):550pA
• Crosstalk:-82dB @ 100kHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

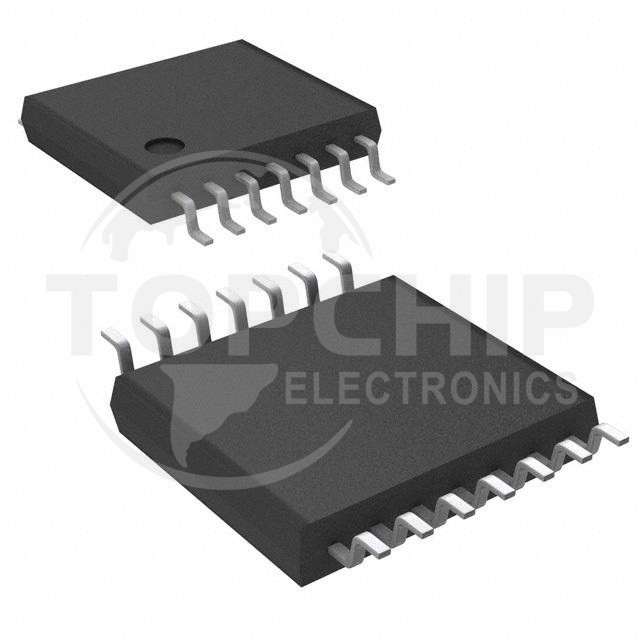

• Package / Case:14-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:14-TSSOP
