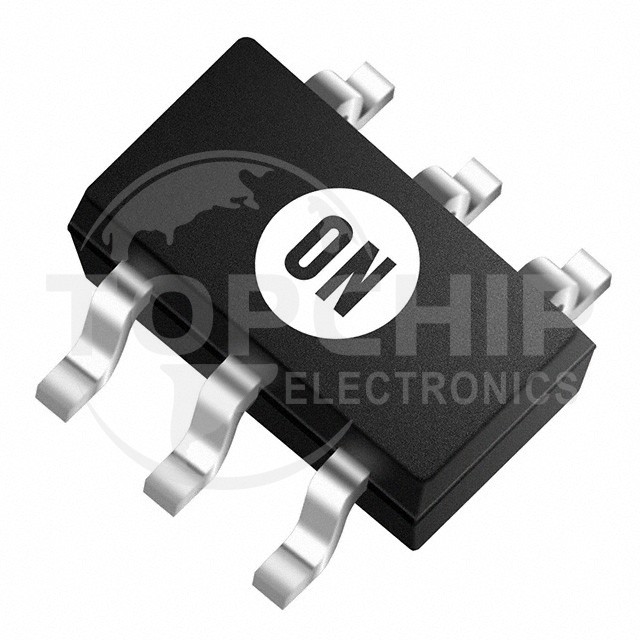

NL5S4157ADFT2G Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:1
• On-State Resistance (Max):800mOhm
• Channel-to-Channel Matching (ΔRon):40mOhm
• Voltage - Supply, Single (V+):1.65V ~ 5.5V
• Voltage - Supply, Dual (V±):1.65V ~ 5.5V
• Switch Time (Ton, Toff) (Max):20ns, 15ns
• -3db Bandwidth:57MHz
• Charge Injection:55pC
• Channel Capacitance (CS(off), CD(off)):23pF
• Current - Leakage (IS(off)) (Max):10nA
• Crosstalk:-66dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount
• Package / Case:6-TSSOP, SC-88, SOT-363
• Supplier Device Package:SC-88/SC70-6/SOT-363
