TS3A24159DRCRG4 Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:2
• On-State Resistance (Max):300mOhm
• Channel-to-Channel Matching (ΔRon):10mOhm
• Voltage - Supply, Single (V+):1.65V ~ 3.6V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):35ns, 25ns
• -3db Bandwidth:23MHz
• Charge Injection:9pC
• Channel Capacitance (CS(off), CD(off)):90pF
• Current - Leakage (IS(off)) (Max):10nA
• Crosstalk:-96dB @ 1MHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

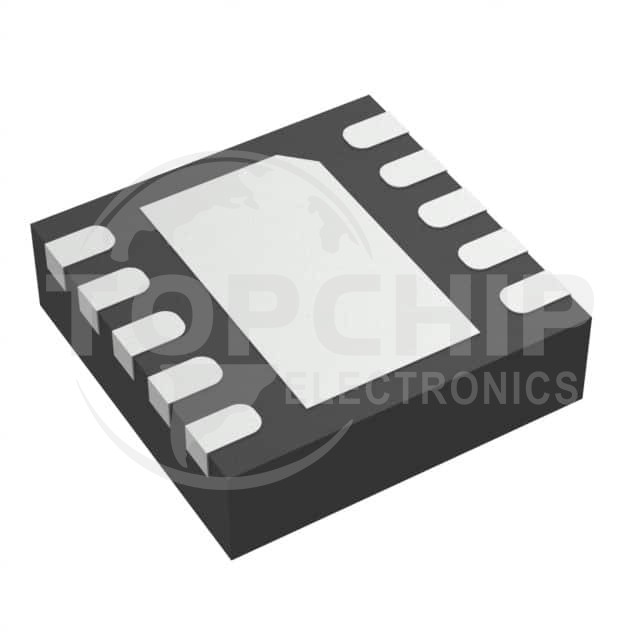

• Package / Case:10-VFDFN Exposed Pad
• Supplier Device Package:10-VSON (3x3)
