ADG5204BRUZ Specifications

• Series:-
• Package:Tube
• Part Status:Active
• Switch Circuit:SP4T
• Multiplexer/Demultiplexer Circuit:4:1
• Number of Circuits:1
• On-State Resistance (Max):160Ohm
• Channel-to-Channel Matching (ΔRon):4.5Ohm
• Voltage - Supply, Single (V+):9V ~ 40V
• Voltage - Supply, Dual (V±):±9V ~ 22V
• Switch Time (Ton, Toff) (Max):185ns, 175ns
• -3db Bandwidth:150MHz
• Charge Injection:-0.6pC
• Channel Capacitance (CS(off), CD(off)):3pF, 26pF
• Current - Leakage (IS(off)) (Max):100pA
• Crosstalk:-80dB @ 1MHz
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

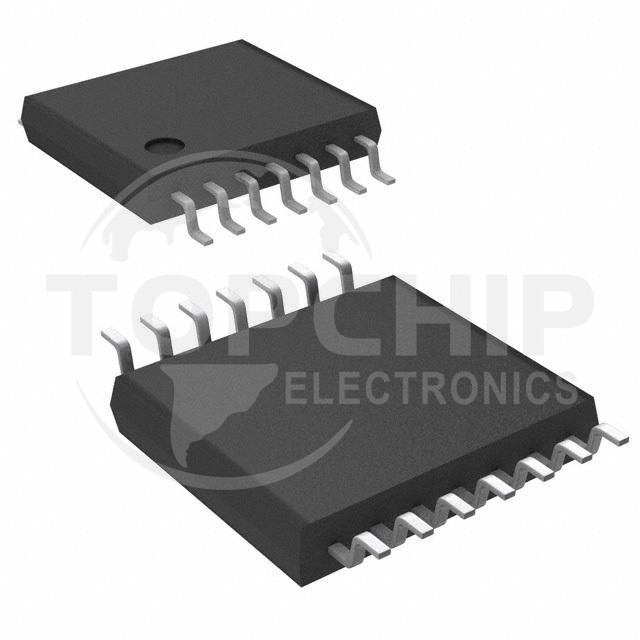

• Package / Case:14-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:14-TSSOP
