LDFPUR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Output Configuration:Positive
• Output Type:Adjustable
• Number of Regulators:1
• Voltage - Input (Max):16V
• Voltage - Output (Min/Fixed):0.8V
• Voltage - Output (Max):12V
• Voltage Dropout (Max):0.5V @ 1A
• Current - Output:1A
• Current - Quiescent (Iq):800 µA
• Current - Supply (Max):-
• PSRR:62dB ~ 55dB (120Hz ~ 100kHz)
• Control Features:Enable, Power Good
• Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount

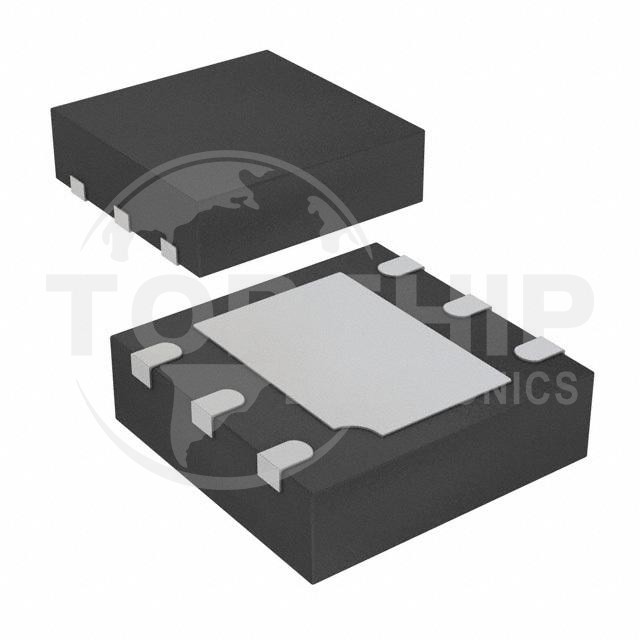

• Package / Case:6-VDFN Exposed Pad
• Supplier Device Package:6-DFN (3x3)
