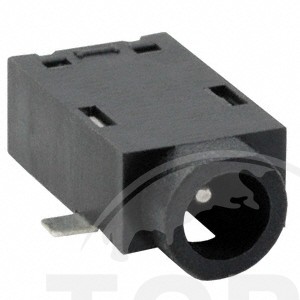

PJ-040-SMT-TR Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Connector Type:Jack
• Gender:Male
• Industry Recognized Mating Diameter:0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1
• Actual Diameter:0.026" (0.65mm ID), 0.102" (2.60mm OD)
• Number of Positions/Contacts:2 Conductors, 2 Contacts
• Internal Switch(s):Does Not Contain Switch
• Mounting Type:Surface Mount, Right Angle
• Mounting Feature:-
• Termination:Solder
• Shielding:Unshielded
• Features:Board Guide
• Insulation Color:-
• Voltage - Rated:24VDC
• Current Rating (Amps):1 A
• Mating Length/Depth:0.303" (7.70mm)
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
