524-AG11D-ES

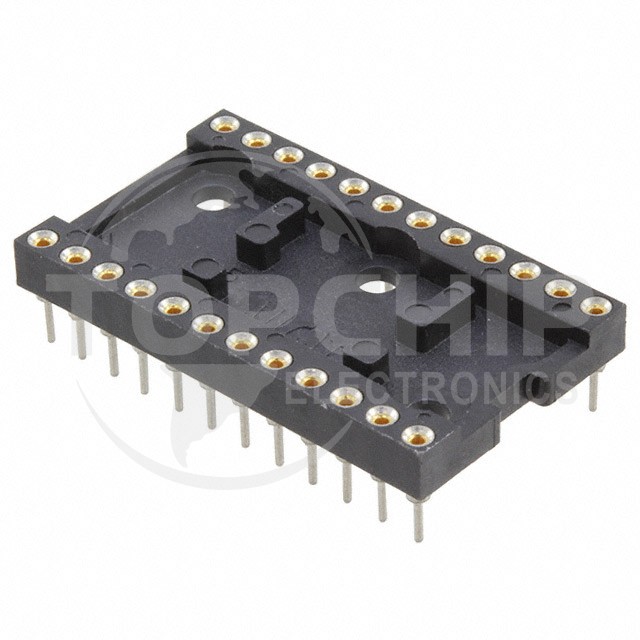

Image is for reference, please contact us to get the real picture

Manufacturer Part
524-AG11D-ES
Manufacturer
TE Connectivity AMP Connectors
Description
CONN IC DIP SOCKET 24POS GOLD
Category
Connectors, Interconnects
Family
Sockets for ICs, Transistors
Series
-
In Stock
0
Datasheets
-

524-AG11D-ES Specifications

  • Series:500
  • Package:Bulk
  • Part Status:Active
  • Type:DIP, 0.6" (15.24mm) Row Spacing
  • Number of Positions or Pins (Grid):24 (2 x 12)
  • Pitch - Mating:0.100" (2.54mm)
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:25.0µin (0.63µm)
  • Contact Material - Mating:Copper Alloy
  • Mounting Type:Through Hole
  • Features:Closed Frame
  • Termination:Solder
  • Pitch - Post:0.100" (2.54mm)
  • Contact Finish - Post:Tin-Lead
  • Contact Finish Thickness - Post:-
  • Contact Material - Post:Copper Alloy
  • Housing Material:Polyester
  • Operating Temperature:-55°C ~ 105°C
