8420-21A1-RK-TP

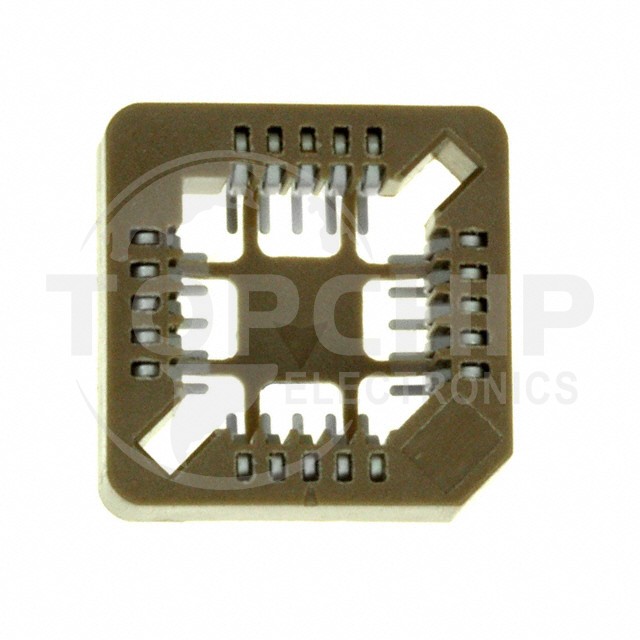

Image is for reference, please contact us to get the real picture

Manufacturer Part
8420-21A1-RK-TP
Manufacturer
3M
Description
CONN SOCKET PLCC 20POS TIN
Category
Connectors, Interconnects
Family
Sockets for ICs, Transistors
Series
-
In Stock
0
Datasheets
-

8420-21A1-RK-TP Specifications

  • Series:8400
  • Package:Tube
  • Part Status:Active
  • Type:PLCC
  • Number of Positions or Pins (Grid):20 (4 x 5)
  • Pitch - Mating:0.050" (1.27mm)
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:160.0µin (4.06µm)
  • Contact Material - Mating:Copper Alloy
  • Mounting Type:Surface Mount
  • Features:Closed Frame
  • Termination:Solder
  • Pitch - Post:0.100" (2.54mm)
  • Contact Finish - Post:Tin
  • Contact Finish Thickness - Post:160.0µin (4.06µm)
  • Contact Material - Post:Copper Alloy
  • Housing Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Operating Temperature:-40°C ~ 105°C
