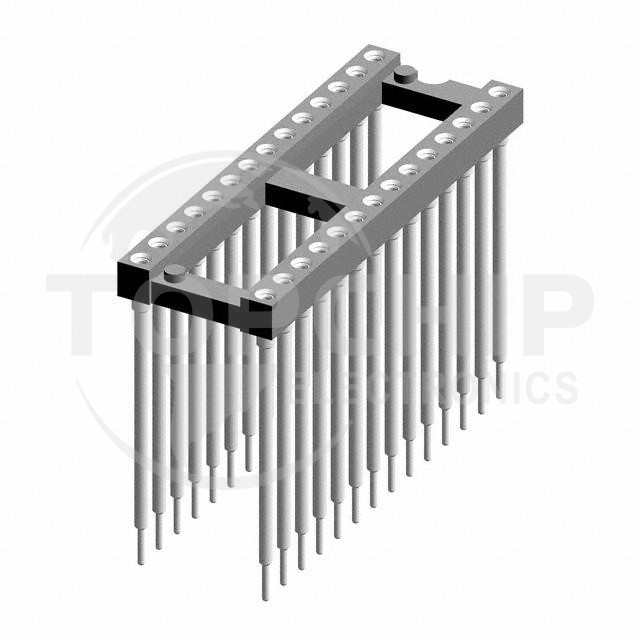

116-83-428-41-004101 Specifications

• Series:116
• Package:Bulk
• Part Status:Active
• Type:DIP, 0.4" (10.16mm) Row Spacing
• Number of Positions or Pins (Grid):28 (2 x 14)
• Pitch - Mating:0.100" (2.54mm)
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:29.5µin (0.75µm)
• Contact Material - Mating:Beryllium Copper
• Mounting Type:Through Hole
• Features:Elevated, Open Frame
• Termination:Solder
• Pitch - Post:0.100" (2.54mm)
• Contact Finish - Post:Tin
• Contact Finish Thickness - Post:-
• Contact Material - Post:Brass
• Housing Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
• Operating Temperature:-55°C ~ 125°C
