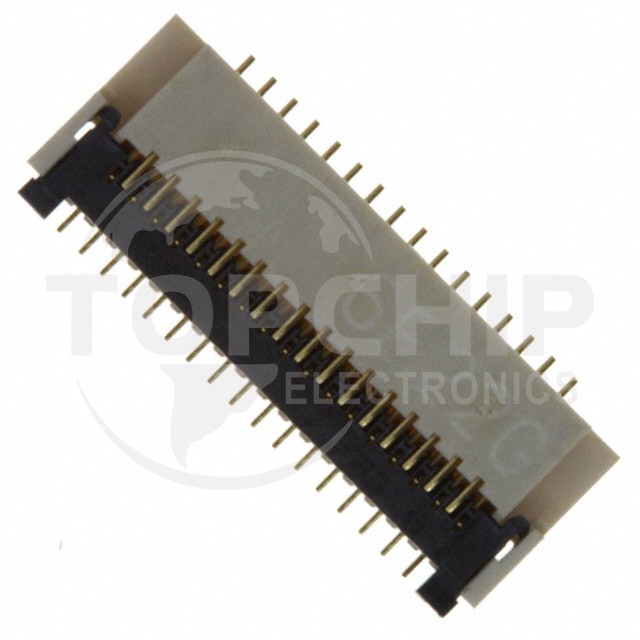

FH23-33S-0.3SHW(05) Specifications

• Series:FH23
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Flat Flex Type:FPC
• Mounting Type:Surface Mount, Right Angle
• Connector/Contact Type:Contacts, Bottom
• Number of Positions:33
• Pitch:0.012" (0.30mm)
• Termination:Solder
• FFC, FCB Thickness:0.20mm
• Height Above Board:0.049" (1.25mm)
• Locking Feature:Flip Lock
• Cable End Type:Tapered
• Contact Material:Phosphor Bronze
• Contact Finish:Gold
• Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
• Actuator Material:Liquid Crystal Polymer (LCP), Halogen Free
• Features:Low Insertion Force (LIF)
• Voltage Rating:30V
• Operating Temperature:-55°C ~ 85°C
• Material Flammability Rating:UL94 V-0
