3118-2-00-80-00-00-08-0

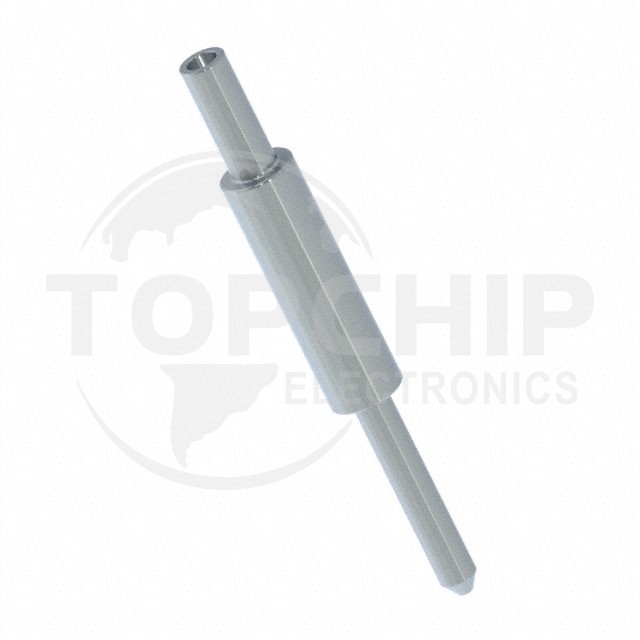

Image is for reference, please contact us to get the real picture

Manufacturer Part
3118-2-00-80-00-00-08-0
Manufacturer
Mill-Max
Description
CONN PC PIN CIRC
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors
Series
-
In Stock
0
Datasheets
-

3118-2-00-80-00-00-08-0 Specifications

  • Series:3118
  • Package:Bulk
  • Part Status:Active
  • Terminal Type:PC Pin
  • Terminal Style:Single End
  • Pin Size - Above Flange:0.025" (0.64mm) Dia
  • Pin Size - Below Flange:-
  • Length - Above Flange:0.150" (3.81mm)
  • Length - Below Flange:0.082" (2.08mm)
  • Length - Overall:0.402" (10.20mm)
  • Flange Diameter:0.050" (1.27mm)
  • Mounting Hole Diameter:0.035" (0.89mm)
  • Mounting Type:Through Hole
  • Termination:Swage
  • Insulation:Non-Insulated
  • Board Thickness:0.062" (1.57mm)
  • Contact Material:Brass Alloy
  • Contact Finish:Tin
  • Contact Finish Thickness:200.0µin (5.08µm)
