0447642002

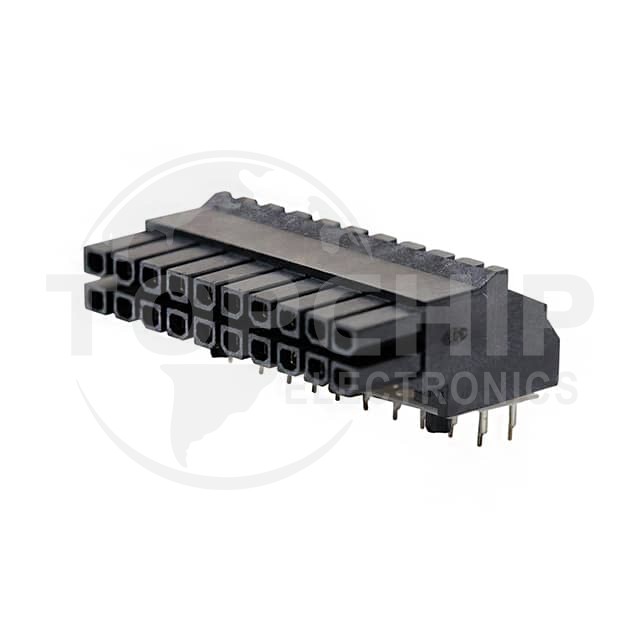

Image is for reference, please contact us to get the real picture

Manufacturer Part
0447642002
Manufacturer
Woodhead - Molex
Description
CONN RCPT 20P 0.118 GOLD PCB R/A
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
0
Datasheets
-

0447642002 Specifications

  • Series:Micro-Fit 3.0 BMI 44764
  • Package:Tray
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:20
  • Number of Positions Loaded:All
  • Pitch - Mating:0.118" (3.00mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Insulation Color:Black
  • Insulation Height:0.402" (10.20mm)
  • Contact Length - Post:0.155" (3.94mm)
  • Operating Temperature:-40°C ~ 105°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Guide
  • Current Rating (Amps):5A
  • Voltage Rating:600VAC
