0015247142

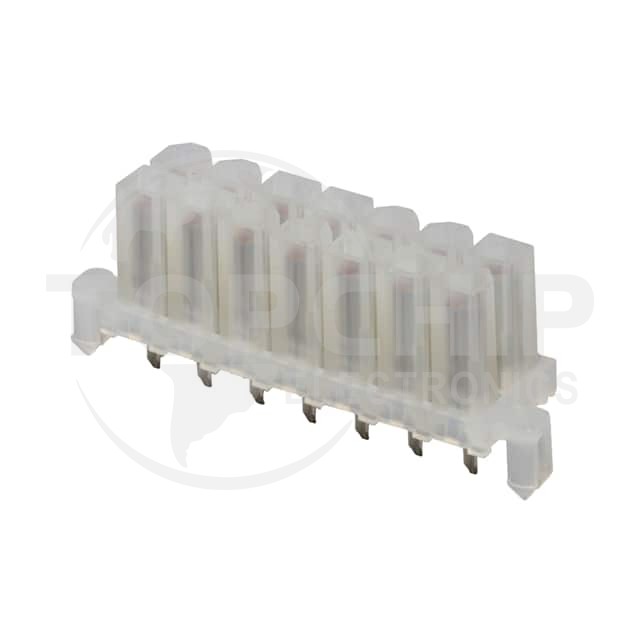

Image is for reference, please contact us to get the real picture

Manufacturer Part
0015247142
Manufacturer
Woodhead - Molex
Description
CONN RCPT 14POS 0.165 GOLD PCB
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
0
Datasheets
-

0015247142 Specifications

  • Series:Mini-Fit BMI 42385
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:14
  • Number of Positions Loaded:All
  • Pitch - Mating:0.165" (4.20mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.165" (4.20mm)
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Natural
  • Insulation Height:0.446" (11.33mm)
  • Contact Length - Post:0.138" (3.50mm)
  • Operating Temperature:-40°C ~ 105°C
  • Material Flammability Rating:UL94 V-2
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Lock
  • Current Rating (Amps):-
  • Voltage Rating:600V
