6-147747-7

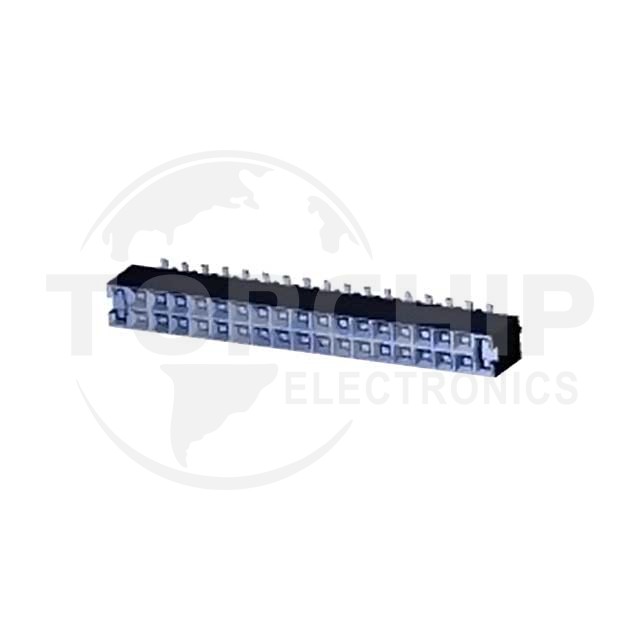

Image is for reference, please contact us to get the real picture

Manufacturer Part
6-147747-7
Manufacturer
TE Connectivity AMP Connectors
Description
CONN RCPT 34POS 0.1 GOLD SMD
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Receptacles, Female Sockets
Series
-
In Stock
0
Datasheets
-

6-147747-7 Specifications

  • Series:AMPMODU Mod IV
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Connector Type:Receptacle, Bottom or Top Entry
  • Contact Type:Female Socket
  • Style:Board to Board or Cable
  • Number of Positions:34
  • Number of Positions Loaded:All
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Insulation Color:Black
  • Insulation Height:0.265" (6.73mm)
  • Contact Length - Post:-
  • Operating Temperature:-65°C ~ 125°C
  • Material Flammability Rating:UL94 V-0
  • Contact Finish - Post:Tin
  • Mated Stacking Heights:-
  • Ingress Protection:-
  • Features:Board Lock, Pick and Place
  • Current Rating (Amps):2A
  • Voltage Rating:-
