B03B-WPJRS-2(LF)(SN)

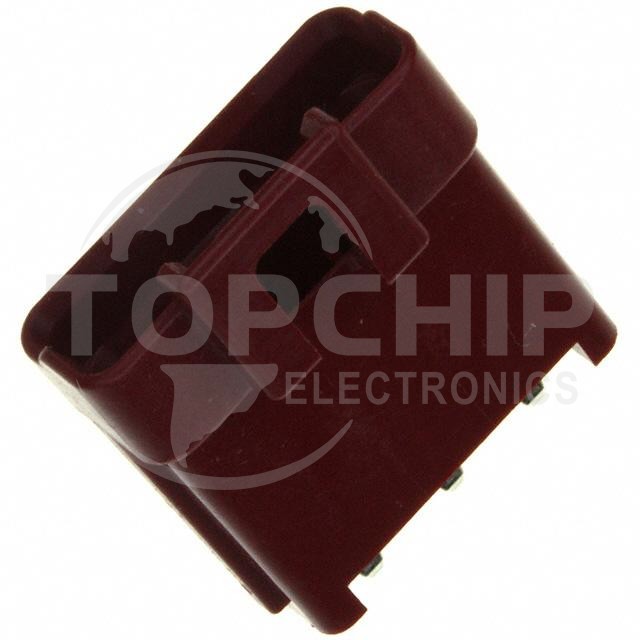

Image is for reference, please contact us to get the real picture

Manufacturer Part
B03B-WPJRS-2(LF)(SN)
Manufacturer
JST
Description
CONN HEADER VERT 3POS 5MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
0
Datasheets
-

B03B-WPJRS-2(LF)(SN) Specifications

  • Series:WPJ
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.197" (5.00mm)
  • Number of Positions:3
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-
  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.843" (21.41mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
  • Features:Board Guide
  • Operating Temperature:-25°C ~ 85°C
  • Ingress Protection:Waterproof
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Red
  • Current Rating (Amps):7A
  • Voltage Rating:300V
