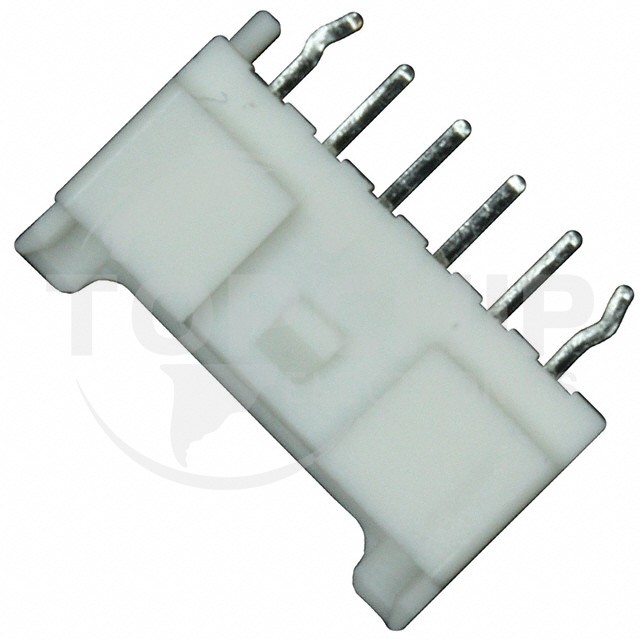

B06B-PASK-1(LF)(SN) Specifications

• Series:PA
• Package:Bulk
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.079" (2.00mm)
• Number of Positions:6
• Number of Rows:1
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Kinked Pin, Solder
• Fastening Type:Locking Ramp
• Contact Length - Mating:0.126" (3.20mm)
• Contact Length - Post:0.118" (3.00mm)
• Overall Contact Length:0.319" (8.10mm)
• Insulation Height:0.303" (7.70mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:-
• Contact Finish - Post:Tin
• Contact Material:Copper Alloy
• Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
• Features:Board Guide
• Operating Temperature:-25°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Natural
• Current Rating (Amps):3A
• Voltage Rating:250V
