SM07B-GHS-TB(LF)(SN)

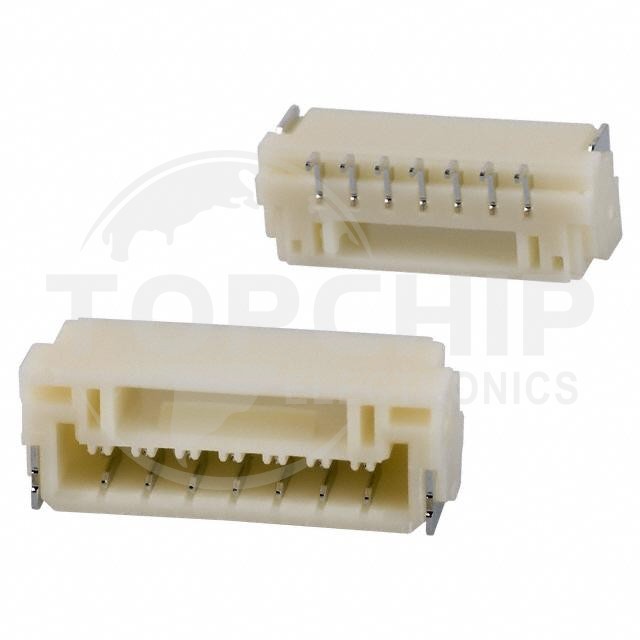

Image is for reference, please contact us to get the real picture

Manufacturer Part
SM07B-GHS-TB(LF)(SN)
Manufacturer
JST
Description
CONN HEADER SMD R/A 7POS 1.25MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
0
Datasheets
-

SM07B-GHS-TB(LF)(SN) Specifications

  • Series:GH
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Outer Shroud Contact
  • Pitch - Mating:0.049" (1.25mm)
  • Number of Positions:7
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount, Right Angle
  • Termination:Solder
  • Fastening Type:Locking Ramp
  • Contact Length - Mating:-
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.167" (4.25mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA9T), Nylon 9T
  • Features:Solder Retention
  • Operating Temperature:-25°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):1A
  • Voltage Rating:50V
