854-10-009-10-001101 In Stock | Preci-Dip 854-10-009-10-001101 |topchipelec.com

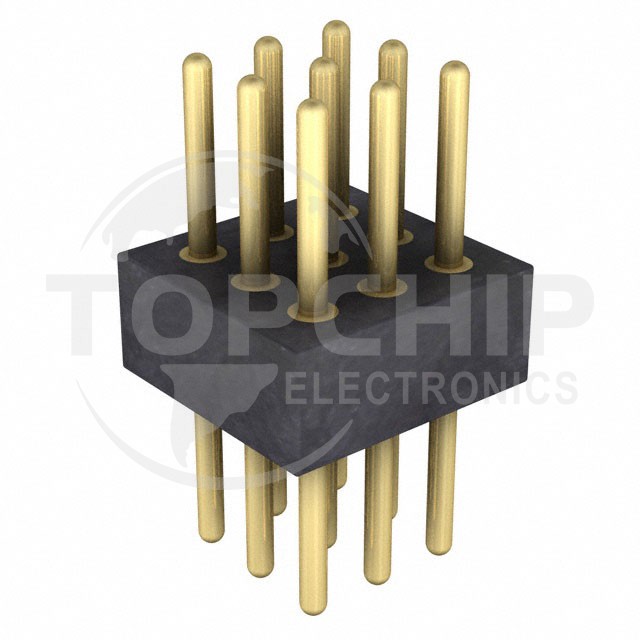

Image is for reference, please contact us to get the real picture

Series:854
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:9
Number of Rows:3
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.118" (3.00mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:0.319" (8.10mm)
Insulation Height:0.075" (1.90mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A
Voltage Rating:150VDC
