AWHW 16G-SMD-200

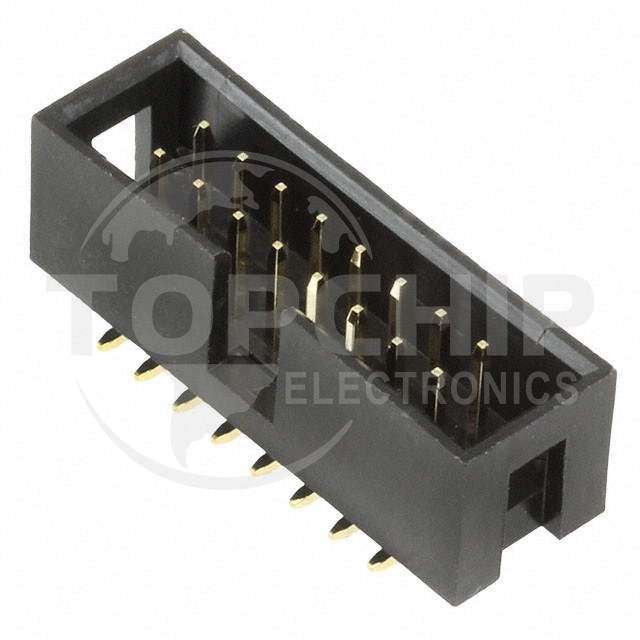

Image is for reference, please contact us to get the real picture

Manufacturer Part
AWHW 16G-SMD-200
Manufacturer
ASSMANN WSW Components
Description
CONN HEADER SMD 16POS 2MM
Category
Connectors, Interconnects
Family
Rectangular Connectors - Headers, Male Pins
Series
-
In Stock
0
Datasheets
-

AWHW 16G-SMD-200 Specifications

  • Series:-
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:16
  • Number of Rows:2
  • Row Spacing - Mating:0.079" (2.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.157" (4.00mm)
  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.226" (5.74mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:-
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA9T), Nylon 9T, Glass Filled
  • Features:Keying Slot, Pick and Place
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1.5A
  • Voltage Rating:-
