802-10-060-66-001101 In Stock | Preci-Dip 802-10-060-66-001101 |topchipelec.com

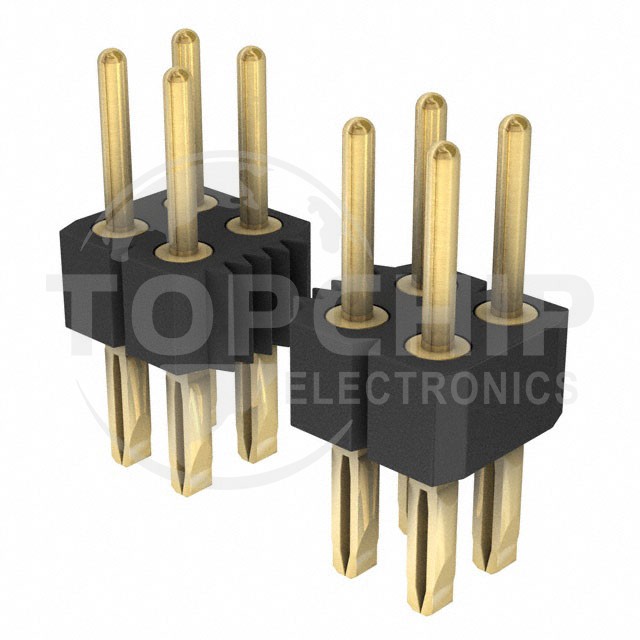

Image is for reference, please contact us to get the real picture

Series:802
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:60
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.191" (4.85mm)
Contact Length - Post:0.150" (3.81mm)
Overall Contact Length:0.467" (11.85mm)
Insulation Height:0.110" (2.79mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Gold
Contact Material:Bronze
Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:150VDC
