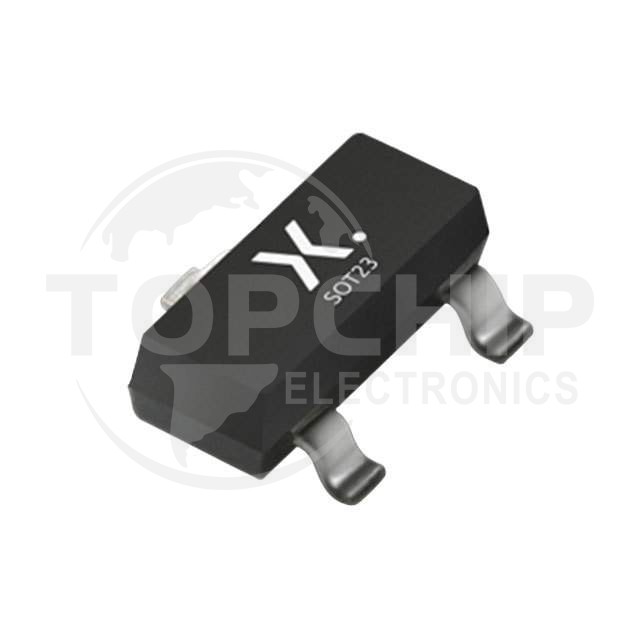

NX138AKVL Specifications

• Series:TrenchMOS™
• Package:Tape & Reel (TR)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:190mA (Ta)
• Drive Voltage (Max Rds On, Min Rds On):2.5V, 10V
• Rds On (Max) @ Id, Vgs:4.5Ohm @ 190mA, 10V
• Vgs(th) (Max) @ Id:1.5V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:1.4 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:20 pF @ 30 V
• FET Feature:-
• Power Dissipation (Max):265mW (Ta)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:TO-236AB
• Package / Case:TO-236-3, SC-59, SOT-23-3
