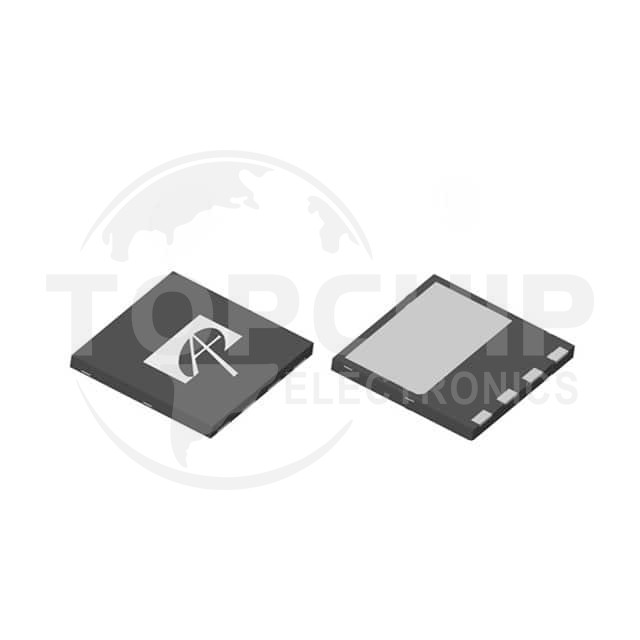

AOV20S60 Specifications

• Series:aMOS™
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Not For New Designs
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):600 V
• Current - Continuous Drain (Id) @ 25°C:3.6A (Ta), 18A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):10V
• Rds On (Max) @ Id, Vgs:250mOhm @ 10A, 10V
• Vgs(th) (Max) @ Id:4.1V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:20 nC @ 10 V
• Vgs (Max):±30V
• Input Capacitance (Ciss) (Max) @ Vds:1038 pF @ 100 V
• FET Feature:-
• Power Dissipation (Max):8.3W (Ta), 278W (Tc)
• Operating Temperature:-55°C ~ 150°C (TJ)
• Mounting Type:Surface Mount
• Supplier Device Package:4-DFN-EP (8x8)
• Package / Case:4-PowerTSFN
