DMTH3004LPS-13 Specifications

• Series:Automotive, AEC-Q101
• Package:Tape & Reel (TR)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):30 V
• Current - Continuous Drain (Id) @ 25°C:22A (Ta), 145A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:3.8mOhm @ 20A, 10V
• Vgs(th) (Max) @ Id:3V @ 250µA
• Gate Charge (Qg) (Max) @ Vgs:43.7 nC @ 10 V
• Vgs (Max):+20V, -16V
• Input Capacitance (Ciss) (Max) @ Vds:2370 pF @ 15 V
• FET Feature:-
• Power Dissipation (Max):3.2W (Ta), 136W (Tc)
• Operating Temperature:-55°C ~ 175°C (TJ)
• Mounting Type:Surface Mount

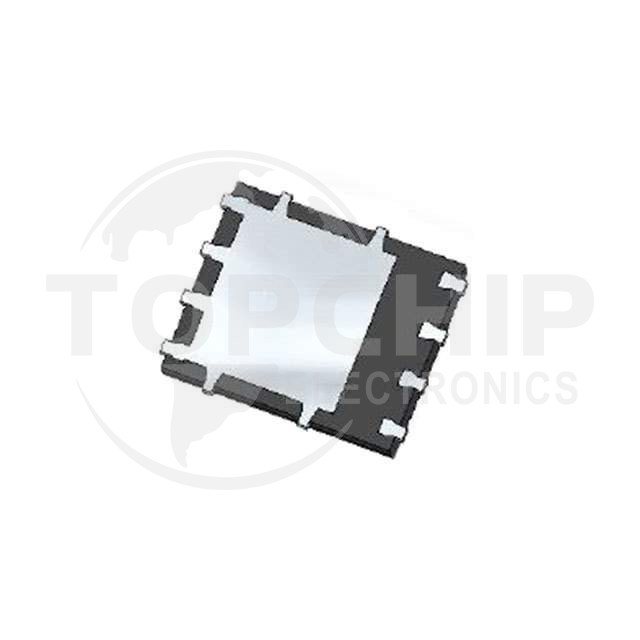

• Supplier Device Package:PowerDI5060-8
• Package / Case:8-PowerTDFN
