TK6R7P06PL,RQ Specifications

• Series:U-MOSIX-H
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• FET Type:N-Channel
• Technology:MOSFET (Metal Oxide)
• Drain to Source Voltage (Vdss):60 V
• Current - Continuous Drain (Id) @ 25°C:46A (Tc)
• Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
• Rds On (Max) @ Id, Vgs:6.7mOhm @ 23A, 10V
• Vgs(th) (Max) @ Id:2.5V @ 300µA
• Gate Charge (Qg) (Max) @ Vgs:26 nC @ 10 V
• Vgs (Max):±20V
• Input Capacitance (Ciss) (Max) @ Vds:1990 pF @ 30 V
• FET Feature:-
• Power Dissipation (Max):66W (Tc)
• Operating Temperature:175°C
• Mounting Type:Surface Mount

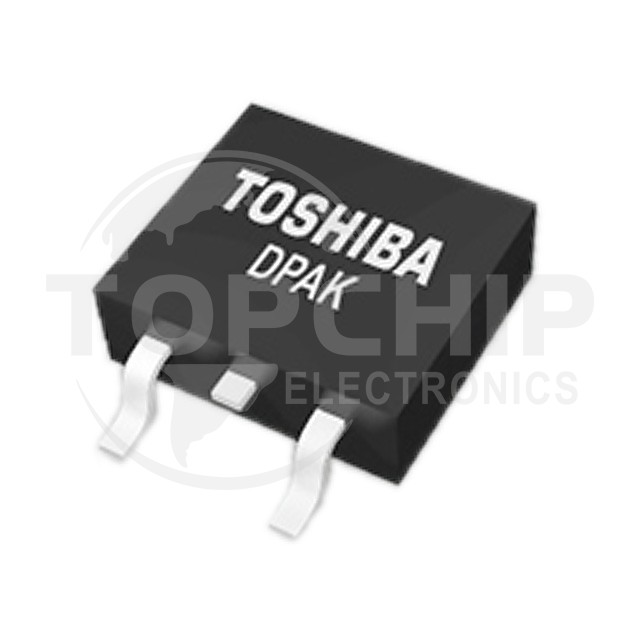

• Supplier Device Package:DPAK
• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
