JW1AFHN-DC6V-F

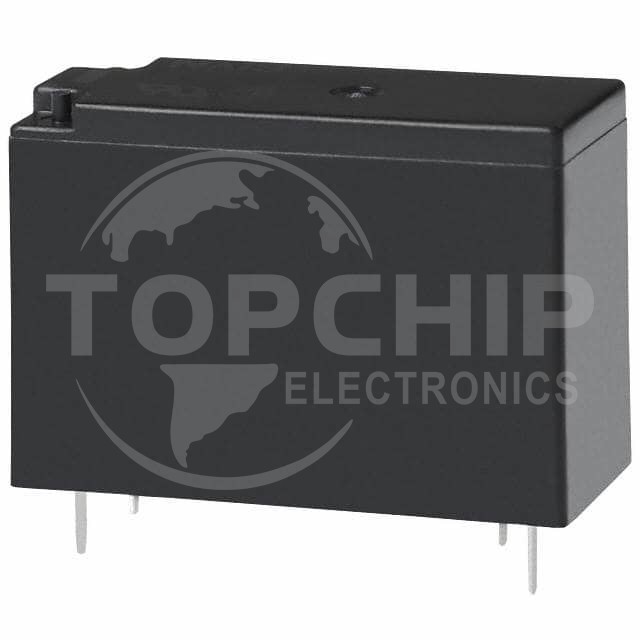

Image is for reference, please contact us to get the real picture

Manufacturer Part
JW1AFHN-DC6V-F
Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST-NO 10A 6V
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
0
Datasheets
-

JW1AFHN-DC6V-F Specifications

  • Series:JW
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:6VDC
  • Contact Form:SPST-NO (1 Form A)
  • Contact Rating (Current):10 A
  • Switching Voltage:250VAC, 30VDC - Max
  • Coil Current:88 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin
  • Seal Rating:Sealed - Flux Protection
  • Coil Insulation:Class E
  • Must Operate Voltage:4.2 VDC
  • Must Release Voltage:0.6 VDC
  • Operate Time:15 ms
  • Release Time:5 ms
  • Operating Temperature:-40°C ~ 60°C
  • Contact Material:Silver Tin Oxide (AgSnO)
  • Relay Type:General Purpose
