APAN3118

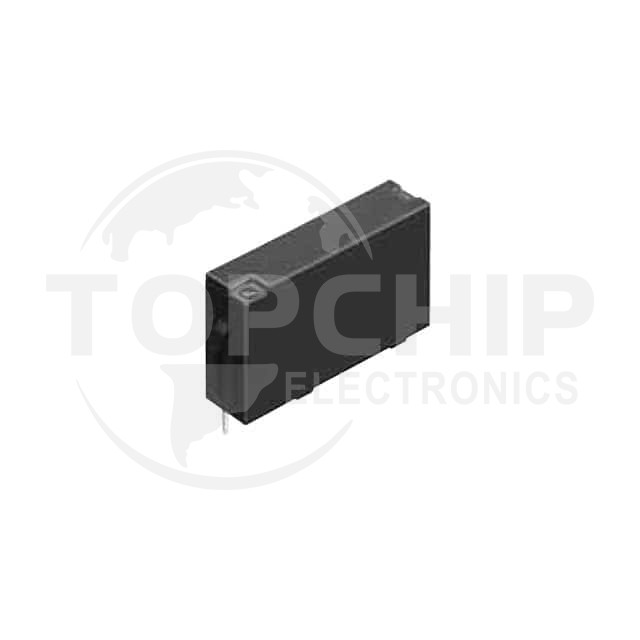

Image is for reference, please contact us to get the real picture

Manufacturer Part
APAN3118
Manufacturer
Panasonic
Description
RELAY GEN PURPOSE SPST 5A 18V
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
0
Datasheets
-

APAN3118 Specifications

  • Series:PA-N
  • Package:Tube
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:18VDC
  • Contact Form:SPST-NO (1 Form A)
  • Contact Rating (Current):5 A
  • Switching Voltage:250VAC, 110VDC - Max
  • Coil Current:6.1 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:PC Pin
  • Seal Rating:Sealed - Fully
  • Coil Insulation:-
  • Must Operate Voltage:12.6 VDC
  • Must Release Voltage:0.9 VDC
  • Operate Time:10 ms
  • Release Time:5 ms
  • Operating Temperature:-40°C ~ 90°C
  • Contact Material:Silver Nickel (AgNi), Gold (Au)
  • Relay Type:General Purpose
