EGUARD0504FTR

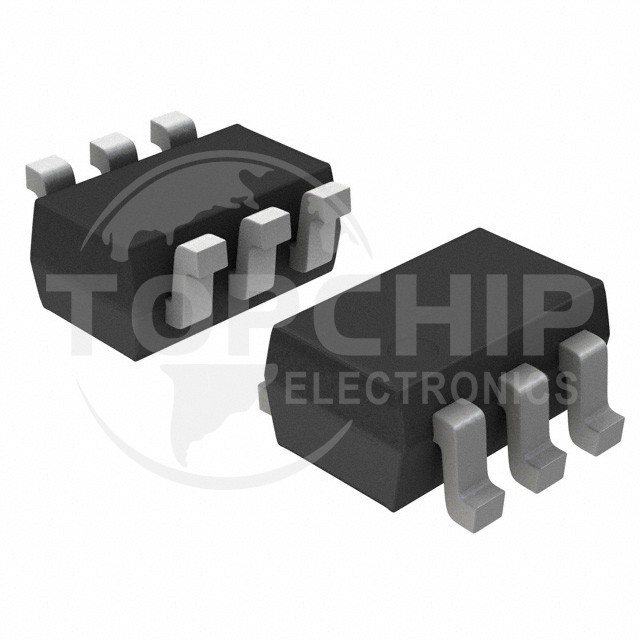

Image is for reference, please contact us to get the real picture

Manufacturer Part
EGUARD0504FTR
Manufacturer
SMC Diode Solutions
Description
DIODE ESD ULTRA LOW CAPACITANCE
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
0
Datasheets
-

EGUARD0504FTR Specifications

  • Series:-
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Steering (Rail to Rail)
  • Unidirectional Channels:4
  • Bidirectional Channels:-
  • Voltage - Reverse Standoff (Typ):5V (Max)
  • Voltage - Breakdown (Min):6V
  • Voltage - Clamping (Max) @ Ipp:25V
  • Current - Peak Pulse (10/1000µs):6A (8/20µs)
  • Power - Peak Pulse:150W
  • Power Line Protection:Yes
  • Applications:DVI, HDMI, USB 2.0, USB OTG
  • Capacitance @ Frequency:3pF @ 1MHz
  • Operating Temperature:-55°C ~ 125°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:6-TSSOP, SC-88, SOT-363
  • Supplier Device Package:SOT-363
