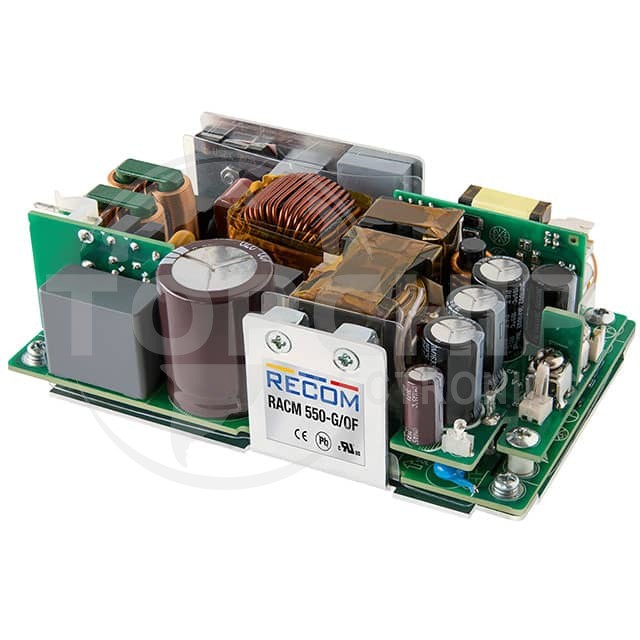

RACM550-56SG/ENC Specifications

• Series:POWERLINE RACM550-G (550W)
• Package:Box
• Part Status:Active
• Type:Enclosed
• Number of Outputs:1
• Voltage - Input:80 ~ 264 VAC, 120 ~ 370 VDC
• Voltage - Output 1:56V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):9.82A
• Power (Watts):550W
• Applications:Household Appliances, ITE (Commercial), Medical
• Voltage - Isolation:4 kV
• Efficiency:94%
• Operating Temperature:-40°C ~ 70°C (With Derating)
• Features:Adjustable Output, Baseplate, Remote On/Off, Remote Sense, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:5.91" L x 3.43" W x 1.77" H (150.0mm x 87.0mm x 45.0mm)
• Approval Agency:CE, cURus
• Standard Number:-
