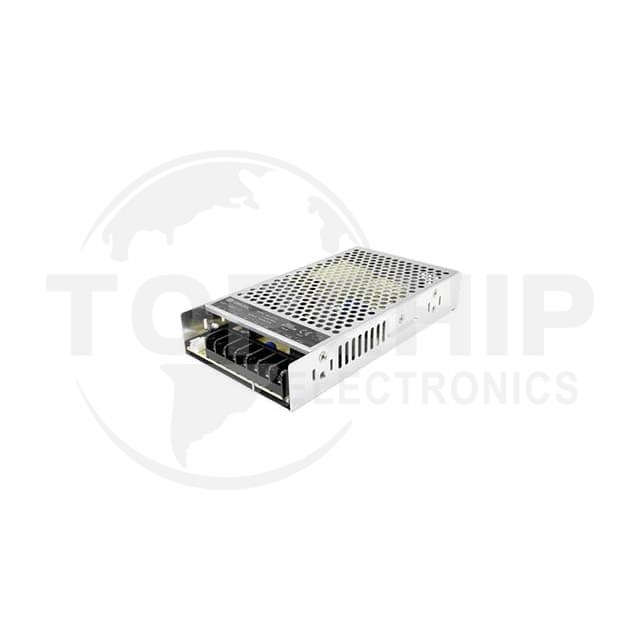

VGS-100D-5-A Specifications

• Series:VGS-100D
• Package:Box
• Part Status:Active
• Type:Enclosed
• Number of Outputs:1
• Voltage - Input:85 ~ 264 VAC, 120 ~ 373 VDC
• Voltage - Output 1:5V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):20A
• Power (Watts):100W
• Applications:Household Appliances, ITE (Commercial)
• Voltage - Isolation:4 kV
• Efficiency:86%
• Operating Temperature:-30°C ~ 70°C (With Derating)
• Features:Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm)
• Approval Agency:CE, cURus, EN, IEC, UL
• Standard Number:Class I; 55032 Class B; 60335; 61000-3-2; 61000-3-3; 61000-4-2; 61000-4-3; 61000-4-4; 61000-4-5; 61000-4-6; 61000-4-11; 61558; 62368
