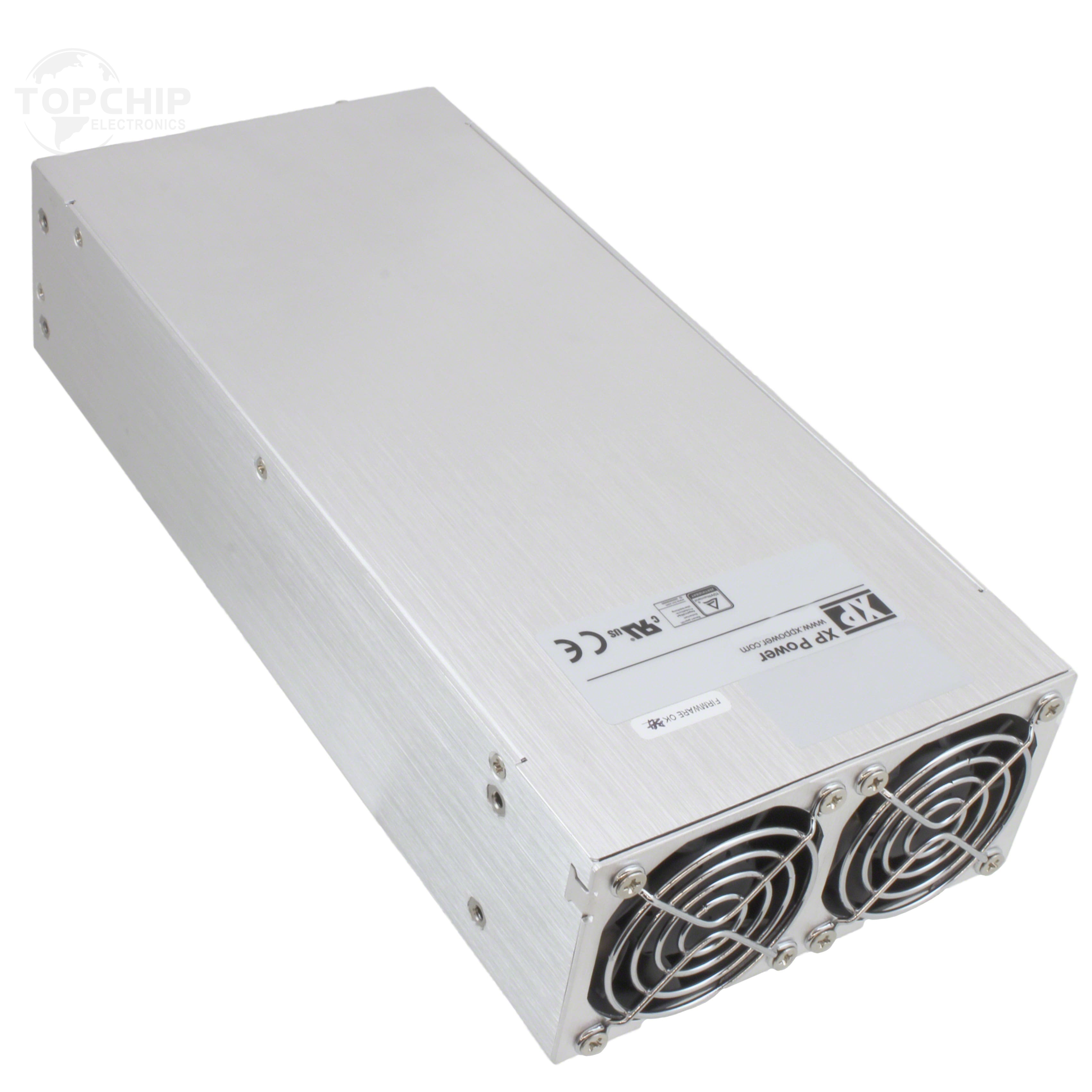

HDS1500PS15 Specifications

• Series:HDS1500 (1500W)
• Package:Box
• Part Status:Active
• Type:Enclosed
• Number of Outputs:1
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output 1:15V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):100A
• Power (Watts):1500W
• Applications:ITE (Commercial)
• Voltage - Isolation:3 kV
• Efficiency:90%
• Operating Temperature:-20°C ~ 60°C (With Derating)
• Features:Adjustable Output, I²C™ Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:12.32" L x 5.00" W x 2.50" H (294.5mm x 127.0mm x 63.5mm)
• Approval Agency:CB, TUV, UL
• Standard Number:62368-1
