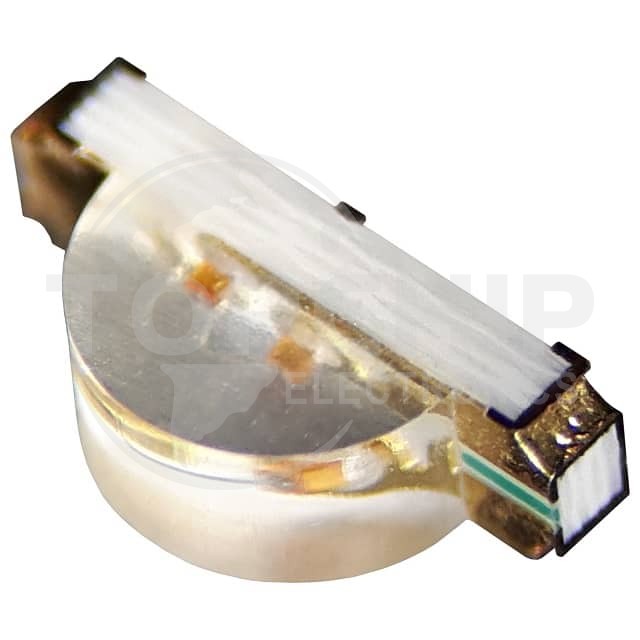

B2102UGNB20C000233U1930 Specifications

• Series:B2102UGNB20
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Color:Blue, Yellow-Green
• Configuration:Independent
• Lens Color:-
• Lens Transparency:Clear
• Millicandela Rating:71.5mcd Blue, 112.5mcd Yellow-Green
• Lens Style:Rectangle with Domed Top
• Lens Size:2.00mm x 1.00mm
• Voltage - Forward (Vf) (Typ):3.3V Blue, 2.1V Yellow-Green
• Current - Test:20mA
• Viewing Angle:124° Blue, 130° Yellow-Green
• Mounting Type:Surface Mount, Right Angle
• Wavelength - Dominant:470nm Blue, 571nm Yellow-Green
• Wavelength - Peak:468nm Blue, 573nm Yellow-Green
• Features:-
• Package / Case:1206 (3216 Metric)
• Supplier Device Package:1206
• Size / Dimension:3.20mm L x 1.50mm W
• Height (Max):1.10mm
