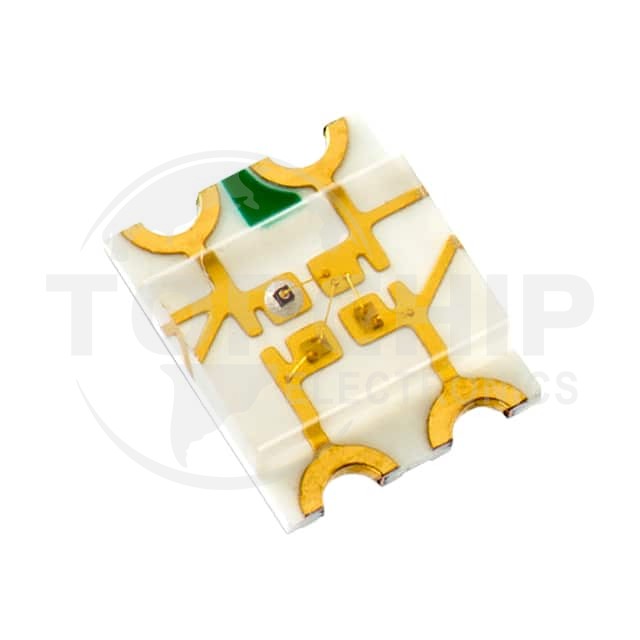

150121M173000 Specifications

• Series:WL-SFCW
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Color:Red, Green, Blue (RGB)
• Configuration:Common Anode
• Lens Color:Colorless
• Lens Transparency:Clear
• Millicandela Rating:70mcd Red, 285mcd Green, 80mcd Blue
• Lens Style:Rectangle with Flat Top
• Lens Size:2.70mm x 2.00mm
• Voltage - Forward (Vf) (Typ):2V Red, 3.3V Green, 3.3V Blue
• Current - Test:20mA Red, 20mA Green, 20mA Blue
• Viewing Angle:120°
• Mounting Type:Surface Mount
• Wavelength - Dominant:624nm Red, 525nm Green, 470nm Blue
• Wavelength - Peak:632nm Red, 520nm Green, 468nm Blue
• Features:-
• Package / Case:4-SMD, No Lead
• Supplier Device Package:-
• Size / Dimension:3.20mm L x 2.70mm W
• Height (Max):1.10mm
