7448991220

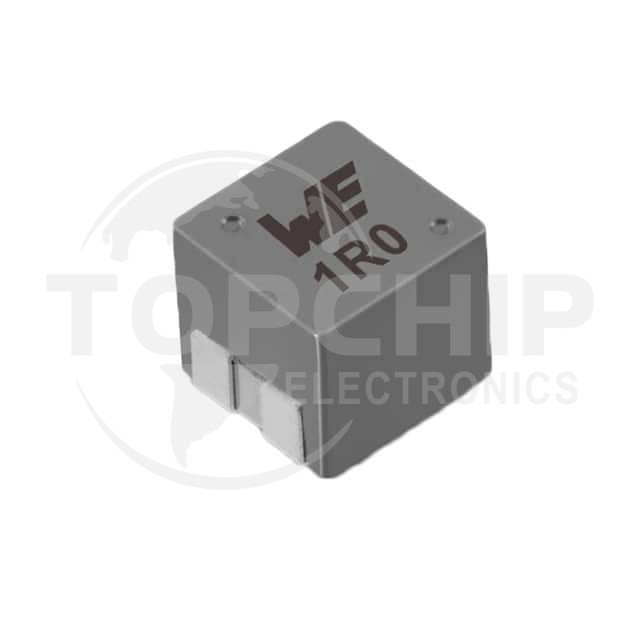

Image is for reference, please contact us to get the real picture

Manufacturer Part
7448991220
Manufacturer
Wurth Elektronik Midcom
Description
SMT MOLDED COUPLED INDUCTOR SIZE
Category
Inductors, Coils, Chokes
Family
Arrays, Signal Transformers
Series
-
In Stock
0
Datasheets
-

7448991220 Specifications

  • Series:WE-MCRI
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Number of Coils:2
  • Inductance - Connected In Parallel:22 µH
  • Inductance - Connected In Series:-
  • Tolerance:±20%
  • Current Rating - Parallel:2.2 A
  • Current Rating - Series:-
  • Current Saturation - Parallel:6.1 A
  • Current Saturation - Series:-
  • DC Resistance (DCR) - Parallel:160mOhm
  • DC Resistance (DCR) - Series:-
  • Shielding:Shielded
  • Ratings:-
  • Operating Temperature:-40°C ~ 125°C
  • Mounting Type:Surface Mount
  • Package / Case:Nonstandard
  • Size / Dimension:0.453" L x 0.394" W (11.50mm x 10.00mm)
  • Height:0.161" (4.10mm)
