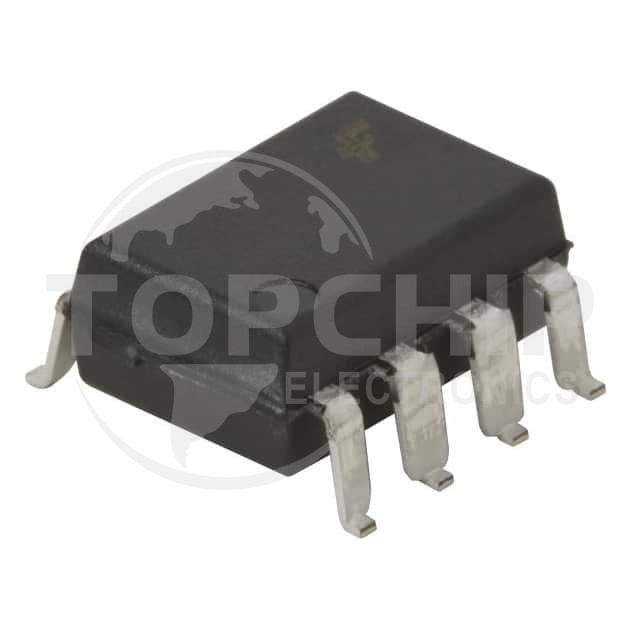

FOD3150SD Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Technology:Optical Coupling
• Number of Channels:1
• Voltage - Isolation:5000Vrms
• Common Mode Transient Immunity (Min):20kV/µs
• Propagation Delay tpLH / tpHL (Max):500ns, 500ns
• Pulse Width Distortion (Max):300ns
• Rise / Fall Time (Typ):60ns, 60ns
• Current - Output High, Low:1A, 1A
• Current - Peak Output:1.5A
• Voltage - Forward (Vf) (Typ):1.5V
• Current - DC Forward (If) (Max):25 mA
• Voltage - Output Supply:15V ~ 30V
• Operating Temperature:-40°C ~ 100°C
• Mounting Type:Surface Mount
• Package / Case:8-SMD, Gull Wing
• Supplier Device Package:8-SMD
• Approval Agency:UL
