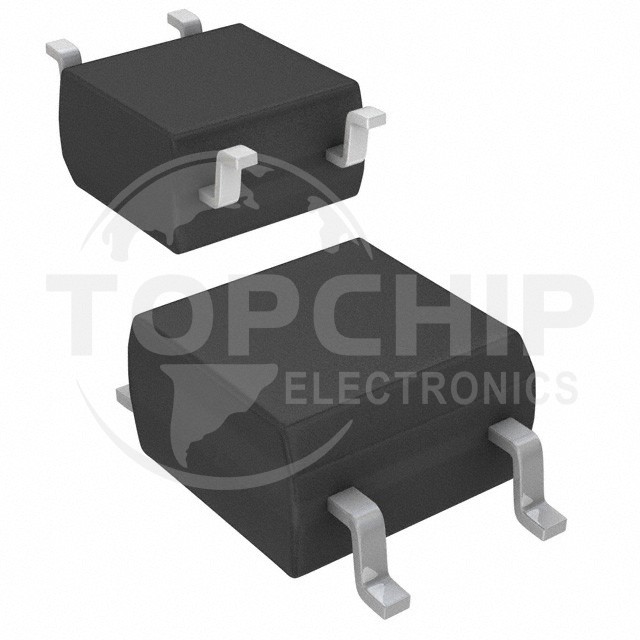

VOM617A-8X001T Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Number of Channels:1
• Voltage - Isolation:3750Vrms
• Current Transfer Ratio (Min):130% @ 5mA
• Current Transfer Ratio (Max):260% @ 5mA
• Turn On / Turn Off Time (Typ):6µs, 4µs
• Rise / Fall Time (Typ):3µs, 3µs
• Input Type:DC
• Output Type:Transistor
• Voltage - Output (Max):80V
• Current - Output / Channel:50mA
• Voltage - Forward (Vf) (Typ):1.1V
• Current - DC Forward (If) (Max):60 mA
• Vce Saturation (Max):400mV
• Operating Temperature:-55°C ~ 110°C
• Mounting Type:Surface Mount
• Package / Case:4-SMD, Gull Wing
• Supplier Device Package:4-SOP (2.54mm)
