74LVC1G384GW,125 Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPST - NC
• Multiplexer/Demultiplexer Circuit:1:1
• Number of Circuits:1
• On-State Resistance (Max):10Ohm
• Channel-to-Channel Matching (ΔRon):-
• Voltage - Supply, Single (V+):1.65V ~ 5.5V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):4.2ns, 5ns
• -3db Bandwidth:500MHz
• Charge Injection:7.5pC
• Channel Capacitance (CS(off), CD(off)):5pF
• Current - Leakage (IS(off)) (Max):5µA
• Crosstalk:-
• Operating Temperature:-40°C ~ 125°C (TA)
• Mounting Type:Surface Mount

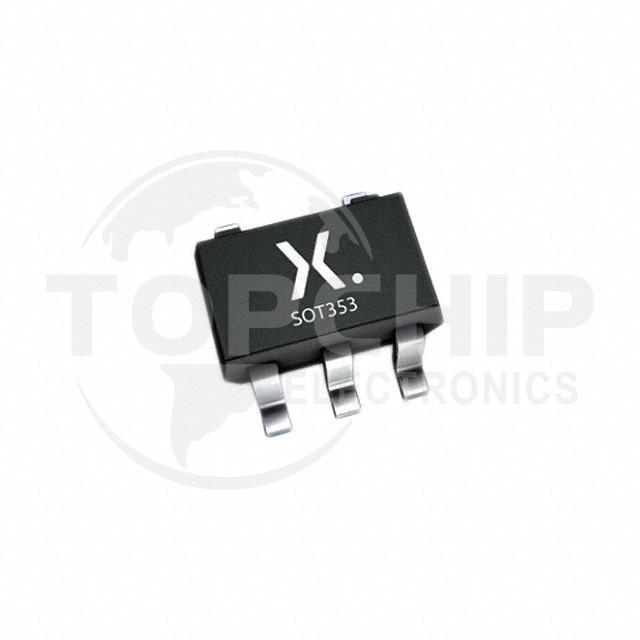

• Package / Case:5-TSSOP, SC-70-5, SOT-353
• Supplier Device Package:5-TSSOP
