DG406DN+T Specifications

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Active
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:16:1
• Number of Circuits:1
• On-State Resistance (Max):100Ohm
• Channel-to-Channel Matching (ΔRon):1.5Ohm
• Voltage - Supply, Single (V+):5V ~ 30V
• Voltage - Supply, Dual (V±):±4.5V ~ 20V
• Switch Time (Ton, Toff) (Max):200ns, 150ns
• -3db Bandwidth:-
• Charge Injection:2pC
• Channel Capacitance (CS(off), CD(off)):8pF, 130pF
• Current - Leakage (IS(off)) (Max):500pA
• Crosstalk:-92dB @ 100kHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

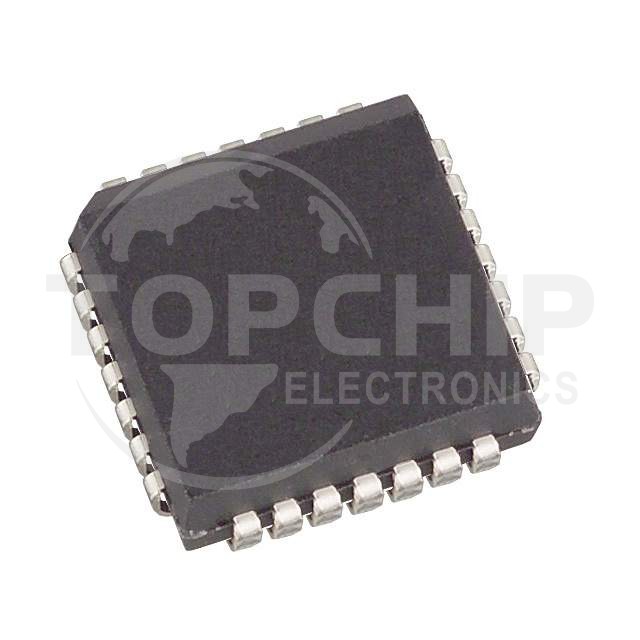

• Package / Case:28-LCC (J-Lead)
• Supplier Device Package:28-PLCC (11.51x11.51)
