FSA2258L10X Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:2
• On-State Resistance (Max):500mOhm (Typ)
• Channel-to-Channel Matching (ΔRon):80mOhm
• Voltage - Supply, Single (V+):1.65V ~ 4.3V
• Voltage - Supply, Dual (V±):-
• Switch Time (Ton, Toff) (Max):55ns, 30ns
• -3db Bandwidth:50MHz
• Charge Injection:25pC
• Channel Capacitance (CS(off), CD(off)):3.3pF
• Current - Leakage (IS(off)) (Max):10nA
• Crosstalk:-100dB @ 100kHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

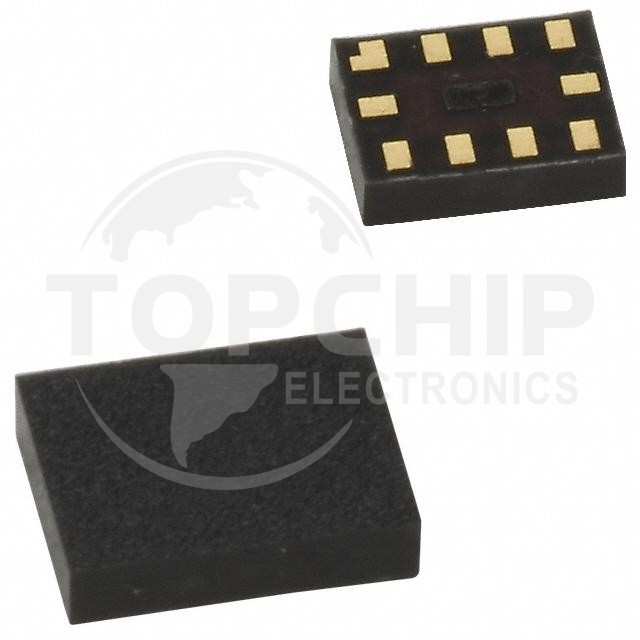

• Package / Case:10-UFQFN Exposed Pad
• Supplier Device Package:10-MicroPak™
