MC74LVXT4052DR2G Specifications

• Series:-
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Active
• Switch Circuit:SP4T
• Multiplexer/Demultiplexer Circuit:4:1
• Number of Circuits:2
• On-State Resistance (Max):26Ohm
• Channel-to-Channel Matching (ΔRon):10Ohm
• Voltage - Supply, Single (V+):2.5V ~ 6V
• Voltage - Supply, Dual (V±):±2.5V ~ 6V
• Switch Time (Ton, Toff) (Max):-
• -3db Bandwidth:80MHz
• Charge Injection:12pC
• Channel Capacitance (CS(off), CD(off)):10pF
• Current - Leakage (IS(off)) (Max):100nA
• Crosstalk:-
• Operating Temperature:-55°C ~ 125°C (TA)
• Mounting Type:Surface Mount

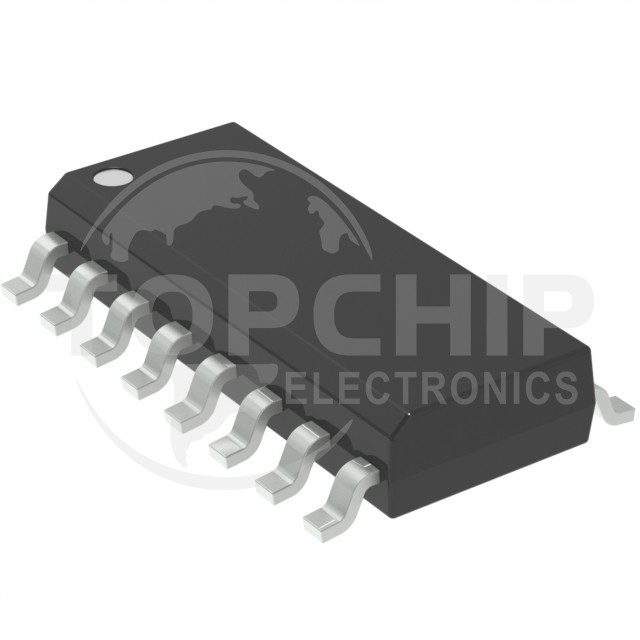

• Package / Case:16-SOIC (0.154", 3.90mm Width)
• Supplier Device Package:16-SOIC
